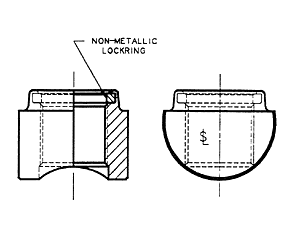

Non-Floating, Non-Metallic Lockring
Features & Benefits
  • 35 cycle reusability.
  • Available in alloy steel (4340) corrosion resistant steel (A286) and heat resistant steel (Inconel 718). (Other materials available on request)
  • For use with 125 KSI to 260 KSI ultimate tensile strength bolts.
  • Available with either a nylon or a polymide lockring.
Limitations
  • Secondary lubricant recommended for installation.
  • Requires precise alignment of bolt hole and barrel nut installation hole.
  • Temperature limited by lockring. Nylon- 250 degrees farenheit. Polymide- 400 degrees farenheit.
Thread Size
  • .250 to 1.500
  • Metric sizes available on request.
